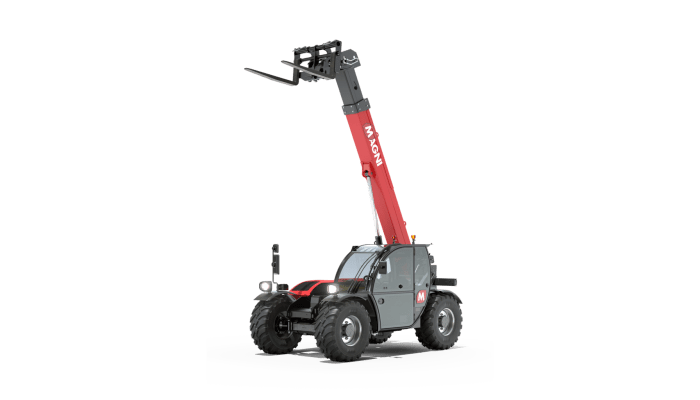

TH 3,5.7

Technical Specifications

• Stabilisers: None

• Lifting capacity: 3,500 kg

• Capacity at maximum height: 3,500 kg

• Lifting height: 6.80 m

• Reach: 3.90 m

• Engine: Deutz TD 2.9 L4 Stage V

• Rated power: 55.40 kW (75.30 hp) at 2,600 rpm

• Number of gears: 2 forward / 2 reverse

• Hydraulic system: 315 bar (Load Sensing)

• Length: 4.40 m

• Width: 2.06 m

• Ground clearance: 320 mm

• Travel speed: 32 km/h

• Climate control as standard: No

• Automatic attachment recognition: No

• Reversible fan drive: No
